Fixed Barcode Scanner Table Top Handfree 2D Barcode Scanner Original Design

Name: Fixed Barcode Scanner Table Top Handfree 2D Barcode Scanner Original Design
Brand: Effon
Price: 1 USD

Quality Fixed Barcode Scanner Table Top Handfree 2D Barcode Scanner Original Design for sale

Brand Name : Effon

Model Number : MS730

Certification : CE,ROHS, FCC

Place of Origin : China

MOQ : 1

Price : Negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal

Supply Ability : 500000pieces per month

Delivery Time : 1-7 days

Packaging Details : 1pcs into a retail box

Type : Fixed Barcode ScannerTable Top Handfree 2D Barcode Scanner original design manufacture

Scan Element Type : CMOS

Application scenario : Bar code payment, group purchase verification, customer service desk and other mobile phone barcode verification scenarios

Interface : USB, TTL232

Resolution : ≥3.9mil

Decode capacity : All 1D Barcode and 2D Barcode

Anti-knock : Designed to withstand 1.5m(5')drops

Prompt : buzzer indicator

Certificate : CE FCC ROHS ISO9001

Contact Now

Fixed Barcode ScannerTable Top Handfree 2D Barcode Scanner original design manufacture

Application scenarios: City buses, corporate buses, long-distance buses, subway station gates, railway station gates, parking lots, sceneries
Zone gate, TMV cabinet, e-commerce self-lifting cabinet, smart home, smart home, storage cabinet, ATM self-service cabinet, self-service check, Inquiry terminal, queuing equipment, certificate manufacturers

Advantage:

Object Auto Sense

Build in RS232 and USB Interface

Omni Directional Reading for all 1D/2D Barcodes.
Super Large Field of View
Can Read Barcode on Screen Even Without Backlight from Cellphone.
Multiple Language Barcode Message Transfer.

Physical Characteristics
Dimensions:	65mm x 61.2mm x 36.5mm
Weight:	33g
Voltage:	3.3-5V(DC)
Working Current:	200mA
Standby Current	90mA
Peak Current	300mA
Performance Characteristics
Image(Pixels):	640 pixels (H) x 480 pixels (V)
Light Source:	Illumination:6500K LED
Field of View:	72°(H)x64°(V)
Roll/Pitch/Yaw:	360° ,±65°,±60°
Motion Tolerances:	>2m/s
Print Contrast:	20%minimum reflective difference
Interfaces Supported:	USB,RS232
Symbology Decode Capability
1-D:	UPC, EAN, Code 128, Code 39, Code 93, Code 11, Matrix 2 of 5,Codabar Interleaved 2 of 5,Mis Plessey, GSI DataBar, China Postal,Korean Postal, etc.
2-D	PDF417,MicroPDF417,Data Matrix,Maxicode,QR Code,MicroQR,Aztec,Hanxin,etc.
Minimum Resolution	≥3.9 mil
Decode Ranges
5 mil(Code 39)	10mm-30mm
13 mil(Upc-a)	10mm-80mm
User Environment
Operating Temperature:	0℃ to 50℃
Storage Temperature:	-40℃ to 70℃
Humidity:	0% to 95%relative humidity,non-condensing
Shock Specifications:	Designed to withstand 1.5m(5’)drops
Ambient Light Immunity:	100.000Lux.

Product Tags:

desktop barcode scanner

embedded barcode scanner

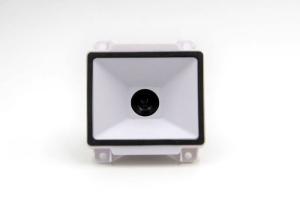

Fixed Barcode Scanner Table Top Handfree 2D Barcode Scanner Original Design Images
